Pneumatic mobile mining rock drill rig

We totally have 3 kinds of pneumatic mobile rock drills, of course, we also can design as customers' requirement.

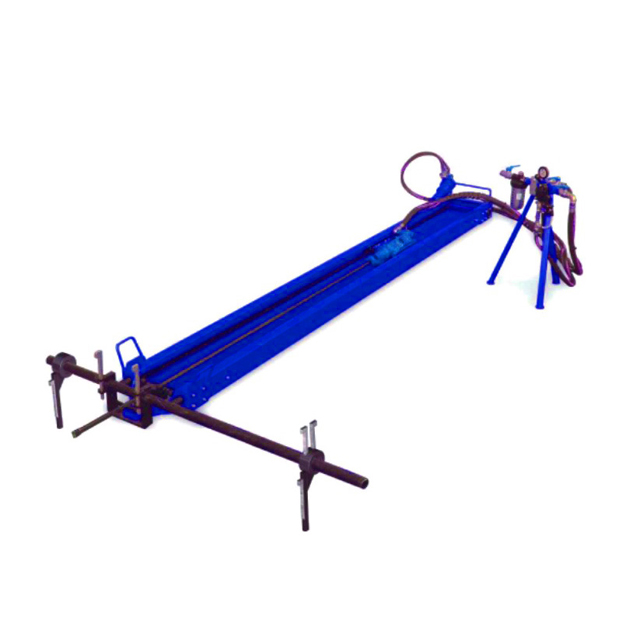

1. Light-weight mobile rock drill, equiped with 1 rock drill, YT28 or FY28. For both vertical drilling and horizontal drilling.

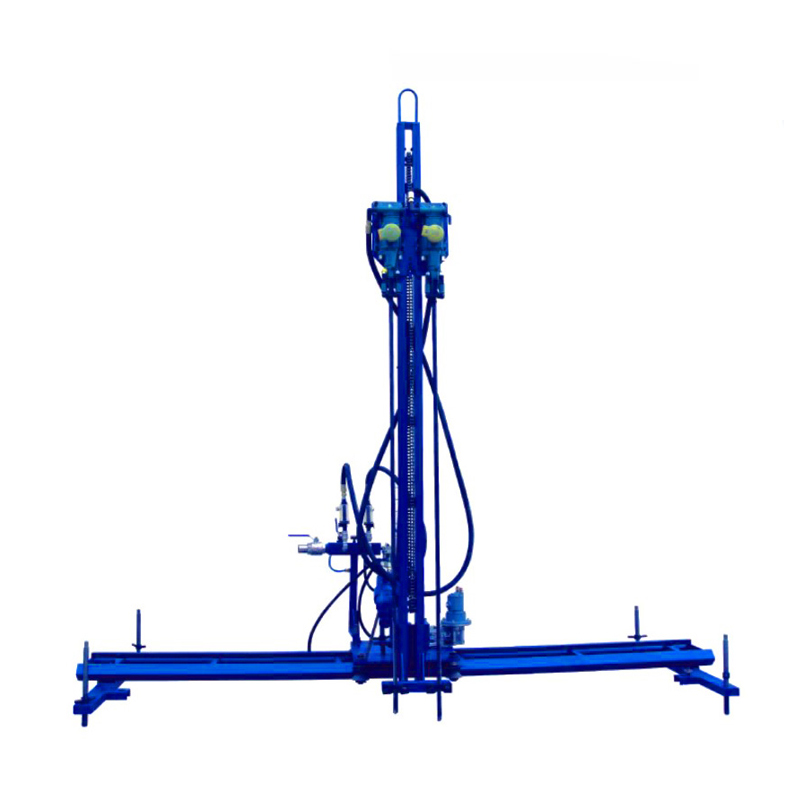

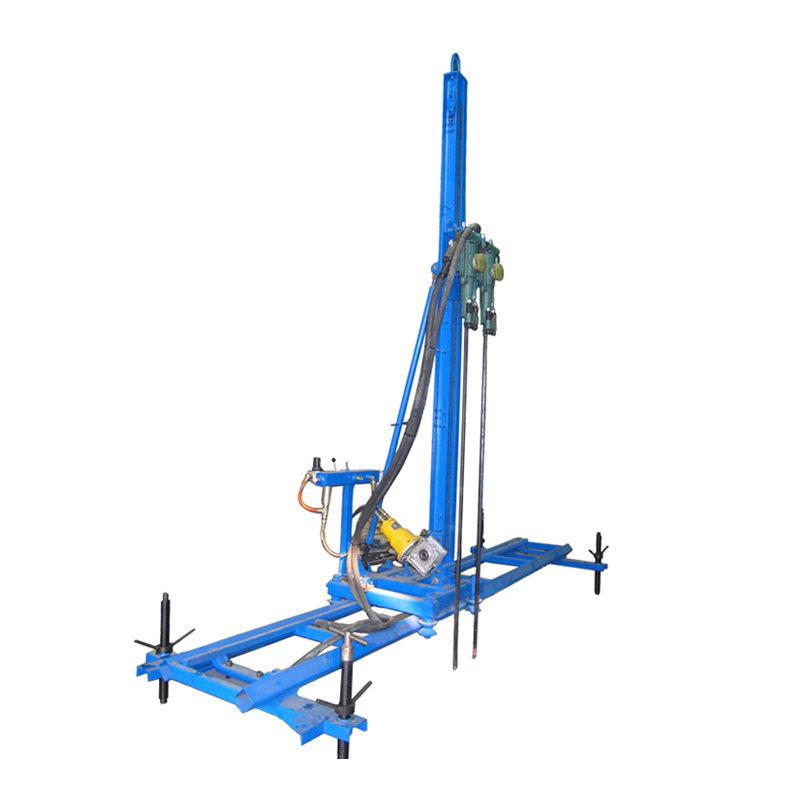

2. Medium-weight mobile rock drill, equiped with 2 rock drills, YT24 or YT28. For both vertical drilling and horizontal drilling.

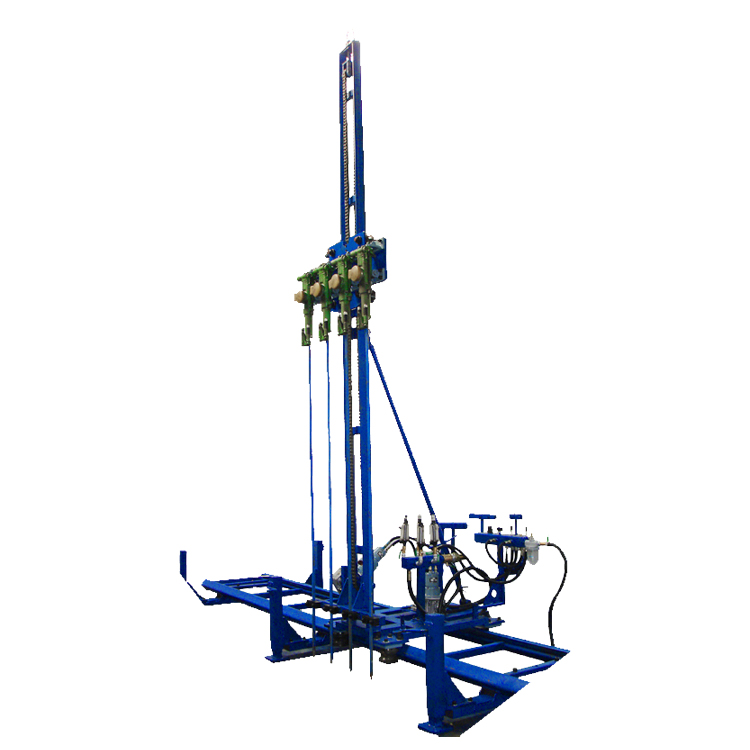

3. Heavy-weight mobile rock drill, equiped with 4 hammers,  YT24 or YT28. For vertical drilling only.
The pneumatic mobile rock drill has following advantages:
1. It helps you to drill holes on a straight line, so you can save the blocks, increasing the daily output.
2. High drilling efficiency and low energy consumption, low maintenance cost.
3. Automatically operate, save labor force.

We totally have 3 kinds of pneumatic mobile rock drills, of course, we also can design as customers' requirement.
1. Light-weight mobile rock drill, equiped with 1 rock drill, YT28 or FY28. For both vertical drilling and horizontal drilling.
2. Medium-weight mobile rock drill, equiped with 2 rock drills, YT24 or YT28. For both vertical drilling and horizontal drilling.
3. Heavy-weight mobile rock drill, equiped with 4 hammers,  YT24 or YT28. For vertical drilling only.
The pneumatic mobile rock drill has following advantages:
1. It helps you to drill holes on a straight line, so you can save the blocks, increasing the daily output.
2. High drilling efficiency and low energy consumption, low maintenance cost.
3. Automatically operate, save labor force.

Technical Parameters

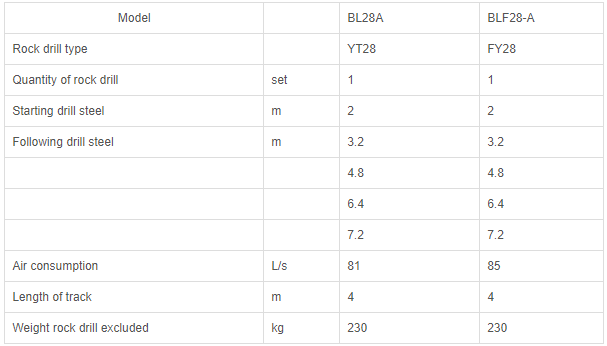

1. One Rock Drill

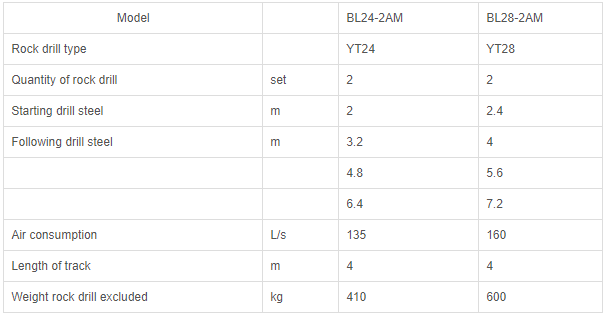

2. Two rock drills

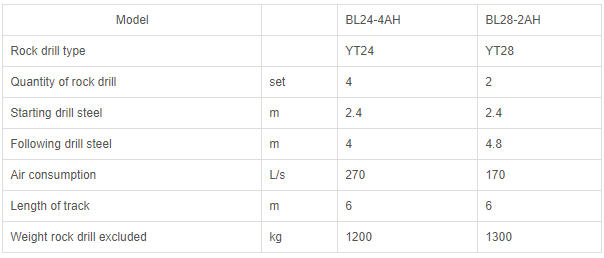

3 Four Rock Drills
